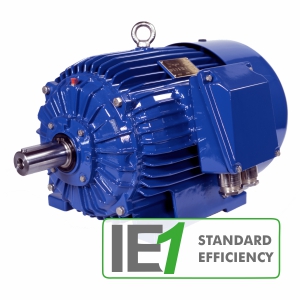

Serie 2Sg Sg Sh | Silniki trójfazowe indukcyjne klatkowe ogólnego przeznaczenia klasy IE1

WYKONANIE PODSTAWOWE:

Klasa sprawności IE1
Praca ciągła S1
Napięcie znamionowe 400V
Częstotliwość zasilania 50Hz
Prędkości obrotowe 3000, 1500 lub 1000 obr/min
Klasa izolacji F
Stopień ochrony IP55
Temperatura otoczenia do +40°C
Forma wykonania IM1001 (IMB3 - na łapach)

INNE WYKONANIA ZGODNIE Z ŻYCZENIEM KLIENTA UZGODNIONE Z PRODUCENTEM

SILNIKI PRODUKOWANE NA RYNKI ZAGRANICZNE POZA OBSZAREM UNII EUROPEJSKIEJ

Symbol Wielkość mechaniczna Ilość biegunów Moc znamionowa [kW] Moc znamionowa [HP] Prędkość synchroniczna [obr/min] Moment znamionowy [Nm]
Resetuj
2Sg200L10A 200 10 7.5 10 600 123
2Sg200L10B 200 10 11 15 600 178
2Sg200L12 200 12 9.0 12 500 175
2Sg200L12z 200 12 11 15 500 216
2Sg200L2A 200 2 30 40 3000 97
2Sg200L2B 200 2 37 50 3000 119
2Sg200L2Bz 200 2 45 60 3000 145
2Sg200L4 200 4 30 40 1500 195
2Sg200L4Az 200 4 37 50 1500 241
2Sg200L4Bz 200 4 45 60 1500 291
2Sg200L6A 200 6 18.5 25 1000 180
2Sg200L6B 200 6 22 30 1000 214
2Sg200L6Bz 200 6 30 40 1000 294
2Sg200L8 200 8 15 20 750 195
2Sg200L8z 200 8 18.5 25 750 242
2Sg225M10 250 10 15 20 600 243
2Sg225M10z 225 10 18.5 25 600 299
2Sg225M12 225 12 13 18 500 261
2Sg225M12z 225 12 15 20 500 290
2Sg225M2 225 2 45 60 3000 145
2Sg225M2z 225 2 55 75 3000 177
2Sg225M4 225 4 45 60 1500 290
2Sg225M4z 225 4 55 75 1500 356
2Sg225M6 225 6 30 40 1000 292
2Sg225M6Az 225 6 37 50 1000 360
2Sg225M6Bz 225 6 45 60 1000 439
2Sg225M8 225 8 22 30 750 286
2Sg225M8z 225 8 30 40 750 389
2Sg225S10 225 10 13 18 600 210
2Sg225S12 225 12 11 15 500 214
2Sg225S4 225 4 37 50 1500 240
2Sg225S8 225 8 18.5 25 750 240
2Sg250M10 250 10 22 30 600 355
2Sg250M12 250 12 18.5 25 500 361
2Sg250M2 250 2 55 75 3000 177
2Sg250M2z 250 2 75 100 3000 241
2Sg250M4 250 4 55 75 1500 354
2Sg250M4z 250 4 75 100 1500 486
2Sg250M6 250 6 37 50 1000 359
2Sg250M6Az 250 6 45 60 1000 436
2Sg250M6Bz 250 6 55 75 1000 533
2Sg250M8 250 8 30 40 750 388
2Sg250M8z 250 8 37 50 750 481
2Sg280M10 280 10 45 60 600 732
2Sg280M12 280 12 30 40 500 585
2Sg280M2 280 2 90 125 3000 289
2Sg280M2z 280 2 110 150 3000 353
2Sg280M4 280 4 90 125 1500 579
2Sg280M4z 280 4 110 150 1500 710
2Sg280M6 280 6 55 75 1000 533
2Sg280M6z 280 6 75 100 1000 727
2Sg280M8 280 8 45 60 750 583
2Sg280M8z 280 8 55 75 750 715
2Sg280S10A 280 10 30 40 600 489
2Sg280S10B 280 10 37 50 600 606
2Sg280S12 280 12 22 30 500 428
2Sg280S2 280 2 75 100 3000 241
2Sg280S4 280 4 75 100 1500 482
2Sg280S6 280 6 45 60 1000 436
2Sg280S8 280 8 37 50 750 479
2Sg315M10 315 10 75 100 600 1229
2Sg315M12A 315 12 45 60 500 877
2Sg315M12B 315 12 55 75 500 1072
2Sg315M2A 315 2 132 175 3000 424
2Sg315M2B 315 2 160 220 3000 514
2Sg315M4A 315 4 132 175 1500 848
2Sg315M4B 315 4 160 220 1500 1026
2Sg315M6A 315 6 90 125 1000 873
2Sg315M6B 315 6 110 150 1000 1066
2Sg315M6Bz 315 6 132 180 1000 1280
2Sg315M8A 315 8 75 100 750 972
2Sg315M8B 315 8 90 125 750 1166
2Sg315M8Bz 315 8 110 150 750 1420
2Sg315S10 315 10 45 60 600 731
2Sg315S10z 315 10 55 75 600 901
2Sg315S12 315 12 37 50 500 718
2Sg315S2 315 2 110 150 3000 353
2Sg315S4 315 4 110 150 1500 710
2Sg315S6 315 6 75 100 1000 727
2Sg315S8 315 8 55 75 750 715
PSg100L-2 100 2 4.0 5.5 3000 13.24
PSg100L-4 100 4 4.0 5.5 1500 27.0
PSg100L-6 100 6 1.8 2.4 1000 18.59
PSg100L-6A 100 6 2.2 3.0 1000 22.71
PSg112M-2 112 2 5.5 7.5 3000 18.17
PSg112M-2A 112 2 6.0 8.1 3000 19.83
PSg112M-2B 112 2 7.5 10 3000 24.87
PSg112M-4A 112 4 5.5 7.5 1500 36.86
PSg112M-6 112 6 3.0 4.0 1000 30.64
PSg132M-2 132 2 9.2 12.4 3000 30.9
PSg132M-2A 132 2 11 15 3000 35.98
PSg132M-4 132 4 9.2 12.4 1500 60.38
PSg132M-4A 132 4 11 15 1500 72.45
PSg132M-6 132 6 7.5 10 1000 75.4
PSg132M-8 132 8 4.0 5.5 750 54.57
PSg132S-2 132 2 11 15 3000 35.98
PSg160L-2 160 2 22 30 3000 71.71
PSg160L-4 160 4 18.5 25 1500 121.43
PSg160L-6 160 6 15 20 1000 150.79
PSg180L-2 180 2 30 40 3000 97.45
PSg180L-4 180 4 30 40 1500 195.56
PSg180L-6 180 6 18.5 25 1000 182.14
PSh90L-2 90 2 3.0 4.0 3000 10.7
PSh90L-4 90 4 2.2 3.0 1500 14.9
PSh90L-6 90 6 1.5 2.0 1000 16.1
Sg100L-2 100 2 3.0 4.0 3000 9.86
Sg100L-4A 100 4 2.2 3.0 1500 14.74
Sg100L-4B 100 4 3.0 4.0 1500 20.25
Sg100L-6 100 6 1.5 2.0 1000 15.16
Sg100L-8A 100 8 0.75 1.0 750 10.09
Sg100L-8B 100 8 1.1 1.5 750 14.9
Sg112M-2 112 2 4.0 5.5 3000 13.33
Sg112M-4 112 4 4.0 5.5 1500 26.62
Sg112M-6 112 6 2.2 3.0 1000 21.88
Sg112M-8 112 8 1.5 2.0 750 19.89
Sg132M-4 132 4 7.5 10 1500 49.4
Sg132M-6A 132 6 4.0 5.5 1000 40.2
Sg132M-6B 132 6 5.5 7.5 1000 55.3
Sg132M-8 132 8 3.0 4.0 750 40.35
Sg132S-2A 132 2 5.5 7.5 3000 18.05
Sg132S-2B 132 2 7.5 10 3000 24.5
Sg132S-4 132 4 5.5 7.5 1500 36.22
Sg132S-6 132 6 3.0 4.0 1000 30.16
Sg132S-8 132 8 2.2 3.0 750 29.6
Sg160L-2 160 2 18.5 25 3000 60.3
Sg160L-4 160 4 15 20 1500 98.12
Sg160L-6 160 6 11 15 1000 109.4
Sg160L-8 160 8 7.5 10 750 101.6
Sg160M-2A 160 2 11 15 3000 35.67
Sg160M-2B 160 2 15 20 3000 48.81
Sg160M-4 160 4 11 15 1500 71.95
Sg160M-6 160 6 7.5 10 1000 74.6
Sg160M-8A 160 8 4.0 5.5 750 54.2
Sg160M-8B 160 8 5.5 7.5 750 74
Sg180L-4 180 4 22 30 1500 143.41
Sg180L-6 180 6 15 20 1000 146.92
Sg180L-8 180 8 11 15 750 143.9
Sg180M-2 180 2 22 30 3000 71.95
Sg180M-4 180 4 18.5 25 1500 120.19
Sh90L-2 90 2 2.2 3.0 3000 7.36
Sh90L-4 90 4 1.5 2.0 1500 10.16
Sh90L-6 90 6 1.1 1.5 1000 11.42
Sh90L-8 90 8 0.55 0.75 750 7.78
Sh90S-2 90 2 1.5 2.0 3000 5.05
Sh90S-4 90 4 1.1 1.5 1500 7.48
Sh90S-6 90 6 0.75 1.0 1000 7.83
Sh90S-8 90 8 0.37 0.5 750 5.09
