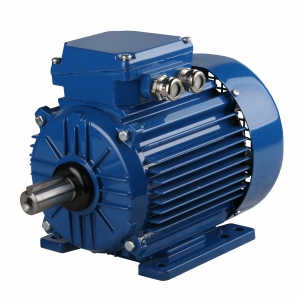

ExSh-ExSg series | Three-phase squirrel-cage increased safety motors

One speed increased safety motors according to IEC60079-0 and IEC60079-7 standard with ATEX certificate

CATALOGUE VERSION

Operating duty S1
Rated voltage 400V
Frequency 50Hz
Synchronous speed 3000, 1500 or 1000rpm
Insulation class F
Degree of protection IP55
Ambient temperature from -20°C up to +40°C
Mounting arrangement IM1001 (IMB3 - on feet)

Terminal box with terminal board with 6 terminals. Aluminum fan.
Cable glands and external earthing terminal Ex

OTHER NON CATALOGUE VERSIONS ARE AVAILABLE ON REQUEST

Symbol Frame size Number of poles Rated output [kW] Rated output [HP] Synchronous speed [rpm] Rated torque [Nm]
Reset
ExSg100L-2-2G_T3 100 2 2.4 3.3 3000 7.9
ExSg100L-2-2G_T4 100 2 1.5 2 3000 4.9
ExSg100L-4A-2G_T3 100 4 2.2 3 1500 14.7
ExSg100L-4A-2G_T4 100 4 1.5 2 1500 10
ExSg100L-4B-2G_T3 100 4 3 4 1500 20.2
ExSg100L-4B-2G_T4 100 4 2 2.7 1500 13.4
ExSg100L-6-2G_T3 100 6 1.5 2 1000 15.2
ExSg100L-6-2G_T4 100 6 1.2 1.6 1000 12.1
ExSg112M-2-2G_T3 112 2 4 5.5 3000 13.3
ExSg112M-2-2G_T4 112 2 2 2.7 3000 6.6
ExSg112M-4-2G_T3 112 4 4 5.5 1500 26.7
ExSg112M-4-2G_T4 112 4 2.4 3.3 1500 15.8
ExSg112M-6-2G_T3 112 6 2.2 3 1000 21.9
ExSg112M-6-2G_T4 112 6 1.6 2.1 1000 15.8
ExSg132M-4-2G_T3 132 4 7.5 10 1500 49.4
ExSg132M-4-2G_T4 132 4 4 5.5 1500 26.2
ExSg132M-6A-2G_T3 132 6 4 5.5 1000 40.2
ExSg132M-6A-2G_T4 132 6 2.8 3.8 1000 27.9
ExSg132M-6B-2G_T3 132 6 5.5 7.5 1000 55.3
ExSg132M-6B-2G_T4 132 6 4 5.5 1000 39.8
ExSg132S-2A-2G_T3 132 2 5.5 7.5 3000 18
ExSg132S-2A-2G_T4 132 2 2.5 3.4 3000 8.1
ExSg132S-2B-2G_T3 132 2 7 9.4 3000 22.9
ExSg132S-2B-2G_T4 132 2 3.5 4.8 3000 11.4
ExSg132S-4-2G_T3 132 4 5.5 7.5 1500 36.1
ExSg132S-4-2G_T4 132 4 3 4 1500 19.6
ExSg132S-6-2G_T3 132 6 3 4 1000 30.3
ExSg132S-6-2G_T4 132 6 2.2 3 1000 21.9
ExSg160L-2-2G_T3 160 2 16 21.4 3000 52
ExSg160L-2-2G_T4 160 2 7.5 10 3000 24.3
ExSg160L-4-2G_T3 160 4 15 20 1500 98.1
ExSg160L-4-2G_T4 160 4 7.5 10 1500 48.9
ExSg160L-6-2G_T3 160 6 11 15 1000 109.4
ExSg160L-6-2G_T4 160 6 7 9.4 1000 68.9
ExSg160M-2A-2G_T3 160 2 11 15 3000 36
ExSg160M-2A-2G_T4 160 2 5 6.8 3000 16.2
ExSg160M-2B-2G_T4 160 2 6 8.1 3000 19.4
ExSg160M-4-2G_T3 160 4 11 15 1500 72
ExSg160M-4-2G_T4 160 4 6 8.1 1500 39.1
ExSg160M-6-2G_T3 160 6 7.5 10 1000 74.6
ExSg160M-6-2G_T4 160 6 5.5 7.5 1000 54.4
ExSg180L-4-2G_T3 180 4 22 30 1500 143.4
ExSg180L-4-2G_T4 180 4 11 15 1500 71.7
ExSg180L-6-2G_T3 180 6 13.5 18.1 1000 131.6
ExSg180M-2-2G_T3 180 2 18.5 25 3000 60
ExSg180M-2-2G_T4 180 2 10 13.6 3000 32.4
ExSg180M-4-2G_T3 180 4 18.5 25 1500 120.2
ExSh56-2A_T3 56 2 0.09 0.12 3000 0.31
ExSh56-2A_T4 56 2 0.09 0.12 3000 0.31
ExSh56-2B_T3 56 2 0.12 0.17 3000 0.42
ExSh56-2B_T4 56 2 0.12 0.17 3000 0.42
ExSh56-4A_T3 56 4 0.06 0.08 1500 0.42
ExSh56-4A_T4 56 4 0.06 0.08 1500 0.42
ExSh56-4B_T3 56 4 0.09 0.12 1500 0.63
ExSh56-4B_T4 56 4 0.09 0.12 1500 0.63
ExSh63-2A_T3 63 2 0.18 0.25 3000 0.61
ExSh63-2A_T4 63 2 0.18 0.25 3000 0.61
ExSh63-2B_T3 63 2 0.25 0.33 3000 0.83
ExSh63-2B_T4 63 2 0.25 0.33 3000 0.83
ExSh63-4A_T3 63 4 0.12 0.17 1500 0.81
ExSh63-4A_T4 63 4 0.12 0.17 1500 0.81
ExSh63-4B_T3 63 4 0.18 0.25 1500 1.24
ExSh63-4B_T4 63 4 0.18 0.25 1500 1.24
ExSh63-6B_T3 63 6 0.06 0.08 1000 0.61
ExSh63-6B_T4 63 6 0.06 0.08 1000 0.61
ExSh71-2A_T3 71 2 0.37 0.5 3000 1.27
ExSh71-2A_T4 71 2 0.37 0.5 3000 1.27
ExSh71-2B_T3 71 2 0.55 0.75 3000 1.88
ExSh71-4A_T3 71 4 0.25 0.33 1500 1.75
ExSh71-4A_T4 71 4 0.25 0.33 1500 1.75
ExSh71-4B_T3 71 4 0.37 0.5 1500 2.62
ExSh71-6A_T3 71 6 0.18 0.25 1000 1.96
ExSh71-6B_T3 71 6 0.25 0.33 1000 2.74
ExSh71-6B_T4 71 6 0.25 0.33 1000 2.74
ExSh80-2A_T3 80 2 0.75 1 3000 2.4
ExSh80-2A_T4 80 2 0.55 0.75 3000 1.86
ExSh80-2B_T3 80 2 1.1 1.5 3000 3.85
ExSh80-2B_T4 80 2 0.75 1 3000 2.51
ExSh80-4A_T3 80 4 0.55 0.75 1500 3.86
ExSh80-4A_T4 80 4 0.37 0.5 1500 2.49
ExSh80-4B_T3 80 4 0.75 1 1500 5.27
ExSh80-4B_T4 80 4 0.55 0.75 1500 3.73
ExSh80-6A_T3 80 6 0.7 0.5 1000 3.84
ExSh80-6B_T3 80 6 0.55 0.75 1000 5.9
ExSh80-6B_T4 80 6 0.37 0.5 1000 3.76
ExSh90L-2-2G_T3 90 2 2.2 3 3000 7.3
ExSh90L-2-2G_T4 90 2 1.2 1.6 3000 4
ExSh90L-4-2G_T3 90 4 1.5 2 1500 10.1
ExSh90L-4-2G_T4 90 4 1.1 1.5 1500 7.3
ExSh90L-6-2G_T3 90 6 1.1 1.5 1000 11.4
ExSh90L-6-2G_T4 90 6 0.8 1.07 1000 8
ExSh90S-2-2G_T3 90 2 1.5 2 3000 5
ExSh90S-2-2G_T4 90 2 1 1.36 3000 3.3
ExSh90S-4-2G_T3 90 4 1.1 1.5 1500 7.5
ExSh90S-4-2G_T4 90 4 0.8 1.1 1500 5.3
ExSh90S-6-2G_T3 90 6 0.75 1 1000 7.8
ExSh90S-6-2G_T4 90 6 0.65 0.88 1000 6.6
