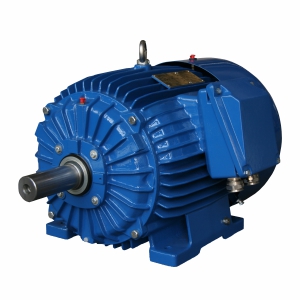

Série ExSh-ExSg | Moteurs triphasés à cage d'écureuil à l'épreuve de la poussière

Moteurs antidéflagrants à une vitesse conformes aux normes IEC60079-0, IEC60079-7, IEC60079-15 et IEC60079-31 avec la certification ATEX.

VERSION CATALOGUE:

Service de fonctionnement S1
Tension nominale 400V
Fréquence 50Hz
Vitesse synchrone 3000, 1500, 1000 ou 750 tr/min
Classe d'isolation F
Degré de protection IP5X ou IP6X
Température ambiante de -20 ° C à + 40 ° C
Montage IM1001 (IMB3 - pattes)

D'AUTRES VERSIONS NON CATALOGUES SONT DISPONIBLES SUR DEMANDE

Symbol Hauteur d'axe Nombre de pôles Puissance nominale [kW] Puissance nominale [HP] Vitesse synchrone [tr/min] Couple nominal [Nm]
Réinitialiser
ExSh90S-2-2GT3_2D 90 2 1.5 2 3000 5
ExSh90L-2-2GT3_2D 90 2 2.2 3 3000 7.3
ExSg100L-2-2GT3_2D 100 2 2.4 3.3 3000 7.9
ExSg112M-2-2GT3_2D 112 2 4 5.5 3000 13.3
ExSg132S-2A-2GT3_2D 132 2 5.5 7.5 3000 18
ExSg132S-2B-2GT3_2D 132 2 7 9.4 3000 22.9
ExSg160M-2A-2GT3_2D 160 2 11 15 3000 36
ExSg160L-2-2GT3_2D 160 2 16 21.4 3000 52
ExSg180M-2-2GT3_2D 180 2 18.5 25 3000 60
ExSh90S-4-2GT3_2D 90 4 1.1 1.5 1500 7.5
ExSh90L-4-2GT3_2D 90 4 1.5 2 1500 10.1
ExSg100L-4A-2GT3_2D 100 4 2.2 3 1500 14.7
ExSg100L-4B-2GT3_2D 100 4 3 4 1500 20.2
ExSg112M-4-2GT3_2D 112 4 4 5.5 1500 26.7
ExSg132S-4-2GT3_2D 132 4 5.5 7.5 1500 36.1
ExSg132M-4-2GT3_2D 132 4 7.5 10 1500 49.4
ExSg160M-4-2GT3_2D 160 4 11 15 1500 72
ExSg160L-4-2GT3_2D 160 4 15 20 1500 98.1
ExSg180M-4-2GT3_2D 180 4 18.5 25 1500 120.2
ExSg180L-4-2GT3_2D 180 4 22 30 1500 143.4
ExSh90S-6-2GT3_2D 90 6 0.75 1 1000 7.8
ExSh90L-6-2GT3_2D 90 6 1.1 1.5 1000 11.4
ExSg100L-6-2GT3_2D 100 6 1.5 2 1000 15.2
ExSg112M-6-2GT3_2D 112 6 2.2 3 1000 21.9
ExSg132S-6-2GT3_2D 132 6 3 4 1000 30.3
ExSg132M-6A-2GT3_2D 132 6 4 5.5 1000 40.2
ExSg132M-6B-2GT3_2D 132 6 5.5 7.5 1000 55.3
ExSg160M-6-2GT3_2D 160 6 7.5 10 1000 74.6
ExSg160L-6-2GT3_2D 160 6 11 15 1000 109.4
ExSg180L-6-2GT3_2D 180 6 13.5 18.1 1000 131.6
ExSh90S-2-2GT4_2D 90 2 1 1.36 3000 3.3
ExSh90L-2-2GT4_2D 90 2 1.2 1.6 3000 4
ExSg100L-2-2GT4_2D 100 2 1.5 2 3000 4.9
ExSg112M-2-2GT4_2D 112 2 2 2.7 3000 6.6
ExSg132S-2A-2GT4_2D 132 2 2.5 3.4 3000 8.1
ExSg132S-2B-2GT4_2D 132 2 3.5 4.8 3000 11.4
ExSg160M-2A-2GT4_2D 160 2 5 6.8 3000 16.2
ExSg160M-2B-2GT4_2D 160 2 6 8.1 3000 19.4
ExSg160L-2-2GT4_2D 160 2 7.5 10 3000 24.3
ExSg180M-2-2GT4_2D 180 2 10 13.6 3000 32.4
ExSh90S-4-2GT4_2D 90 4 0.8 1.07 1500 5.3
ExSh90L-4-2GT4_2D 90 4 1.1 1.5 1500 7.3
ExSg100L-4A-2GT4_2D 100 4 1.5 2 1500 10
ExSg100L-4B-2GT4_2D 100 4 2 2.7 1500 13.4
ExSg112M-4-2GT4_2D 112 4 2.4 3.3 1500 15.8
ExSg132S-4-2GT4_2D 132 4 3 4 1500 19.6
ExSg132M-4-2GT4_2D 132 4 4 5.5 1500 26.2
ExSg160M-4-2GT4_2D 160 4 6 8.1 1500 39.1
ExSg160L-4-2GT4_2D 160 4 7.5 10 1500 48.9
ExSg180L-4-2GT4_2D 180 4 11 15 1500 71.7
ExSh90S-6-2GT4_2D 90 6 0.65 0.88 1000 6.6
ExSh90L-6-2GT4_2D 90 6 0.8 1.07 1000 8
ExSg100L-6-2GT4_2D 100 6 1.2 1.6 1000 12.1
ExSg112M-6-2GT4_2D 112 6 1.6 2.1 1000 15.8
ExSg132S-6-2GT4_2D 132 6 2.2 3 1000 21.9
ExSg132M-6A-2GT4_2D 132 6 2.8 3.8 1000 27.9
ExSg132M-6B-2GT4_2D 132 6 4 5.5 1000 39.8
ExSg160M-6-2GT4_2D 160 6 5.5 7.5 1000 54.4
ExSg160L-6-2GT4_2D 160 6 7 9.4 1000 68.9
3Sg160M2A-(2D,3D) 160 2 11 15 3000 36
3Sg160M2B-(2D,3D) 160 2 15 20 3000 49
3Sg160L2-(2D,3D) 160 2 18.5 25 3000 60
3Sg180M2-(2D,3D) 180 2 22 30 3000 71
2Sg200L2A-(2D,3D) 200 2 30 40 3000 97
2Sg200L2B-(2D,3D) 200 2 37 50 3000 119
2Sg225M2-(2D,3D) 225 2 45 60 3000 145
2Sg250M2-(2D,3D) 250 2 55 75 3000 177
2Sg280S2-(2D,3D) 280 2 75 100 3000 241
2Sg280M2-(2D,3D) 280 2 90 125 3000 290
2Sg315S2-(2D,3D) 315 2 110 150 3000 353
2Sg315M2A-(2D,3D) 315 2 132 180 3000 424
2Sg315M2B-(2D,3D) 315 2 160 220 3000 514
3Sg160M4-(2D,3D) 160 4 11 15 1500 72
3Sg160L4-(2D,3D) 160 4 15 20 1500 98
3Sg180M4-(2D,3D) 180 4 18.5 25 1500 121
3Sg180L4-(2D,3D) 180 4 22 30 1500 143
2Sg200L4-(2D,3D) 200 4 30 40 1500 195
2Sg225S4-(2D,3D) 225 4 37 50 1500 240
2Sg225M4-(2D,3D) 225 4 45 60 1500 291
2Sg250M4-(2D,3D) 250 4 55 75 1500 354
2Sg280S4-(2D,3D) 280 4 75 100 1500 483
2Sg280M4-(2D,3D) 280 4 90 125 1500 579
2Sg315S4-(2D,3D) 315 4 110 150 1500 710
2Sg315M4A-(2D,3D) 315 4 132 180 1500 848
2Sg315M4B-(2D,3D) 315 4 160 220 1500 1030
3Sg160M6-(2D,3D) 160 6 7.5 10 1000 74
3Sg160L6-(2D,3D) 160 6 11 15 1000 109
3Sg180L6-(2D,3D) 180 6 15 20 1000 147
2Sg200L6A-(2D,3D) 200 6 18.5 25 1000 180
2Sg200L6B-(2D,3D) 200 6 22 30 1000 214
2Sg225M6-(2D,3D) 225 6 30 40 1000 292
2Sg250M6-(2D,3D) 250 6 37 50 1000 359
2Sg280S6-(2D,3D) 280 6 45 60 1000 436
2Sg280M6-(2D,3D) 280 6 55 75 1000 533
2Sg315S6-(2D,3D) 315 6 75 100 1000 727
2Sg315M6A-(2D,3D) 315 6 90 125 1000 873
2Sg315M6B-(2D,3D) 315 6 110 150 1000 1066
3Sg160M8A-(2D,3D) 160 8 4 5.5 750 54
3Sg160M8B-(2D,3D) 160 8 5.5 7.5 750 74
3Sg160L8-(2D,3D) 160 8 7.5 10 750 101
3Sg180L8-(2D,3D) 180 8 11 15 750 144
2Sg200L8-(2D,3D) 200 8 15 20 750 196
2Sg225S8-(2D,3D) 225 8 18.5 25 750 240
2Sg225M8-(2D,3D) 225 8 22 30 750 286
2Sg250M8-(2D,3D) 250 8 30 40 750 388
2Sg280S8-(2D,3D) 280 8 37 50 750 479
2Sg280M8-(2D,3D) 280 8 45 60 750 583
2Sg315S8-(2D,3D) 315 8 55 75 750 715
2Sg315M8A-(2D,3D) 315 8 75 100 750 972
2Sg315M8B-(2D,3D) 315 8 90 125 750 1166
